bengal
Fun, fast, friendly, and dependable.
A perfect frame for your first toothpick build.
Frame 1.15.7 (T700)
~€13
5000 HUF
Build for dirt cheap,
fly forever
Build your starter drone for as little as 100 Euros.
Or, go high-end with a DJI O4 Lite and 4K 60fps video.
Either way, this frame is a perfect start for a fun outdoor freestyle build.
Friendly and cute
Small, silent, and non-threatening. Less noise, less hassle, more fun.
Agile and fun
With 2.5 inch propellers, a Bengal can pack a surprising punch.
Very efficient
A light frame means long flights - up to 7 minutes on a 3S 550 mAh battery.

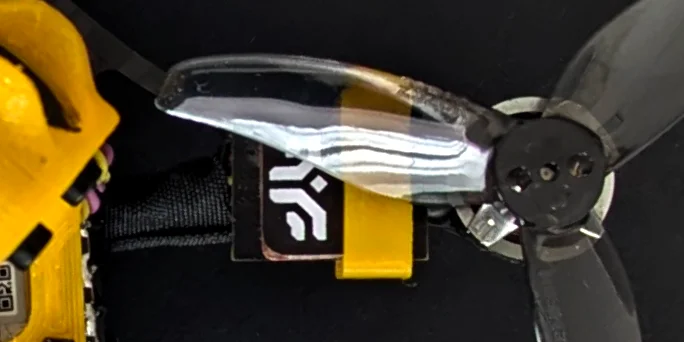

Great for exploring
Lost signal? No problem. Mount a GPS on the arm for peace of mind.

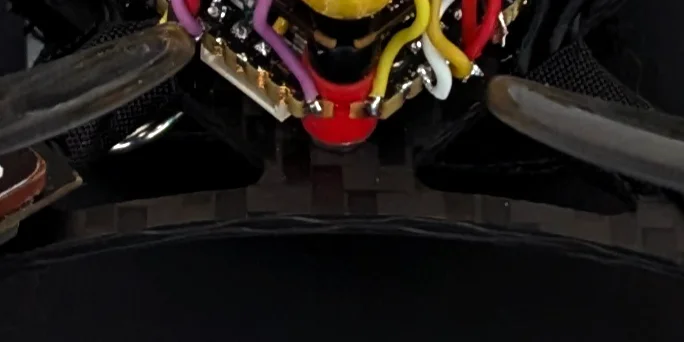

Built to endure
The Bengal's base plate is made of durable T700 carbon fiber. The sturdy TPU canopy protects the camera and lens against scratches.

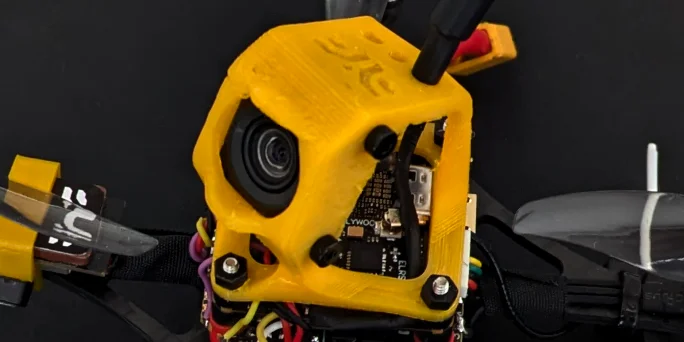

Easy to upgrade
Start with analog, then upgrade to digital. The Bengal can stay in your fleet for a long time.
Always in stock,
forever supported
The Bengal’s entire design is open source. You can buy a Bengal from us, or download the designs for free and cut it yourself. This guarantees fair prices forever.
But it’s still better to buy from us! Thanks to bulk ordering, we can keep prices low — and when you buy directly, you also support the Bengal’s further development.
Are you missing the perfect fin, camera mount, or antenna mount? Contact me, I might be able to help you! You can also easily duplicate and edit the source files in Onshape. Let’s innovate together!
Files are published under the Creative Commons-Attribution-Share Alike license.
Specifications
Frame weight
8.60 g
With 12mm stack screws.
Canopy weight
3.08 g
Analog universal variant.
Stack mounting
25x25
25.5 mm x 25.5 mm
Motor mounting
9 mm
Material
T700 carbon fiber
Plain weave, matte finish.
Plate thickness
2 mm
Fits 25x25 AIOs
A cutout on the plate allows access to downward-facing USB connectors, found on many 2S AIOs.
Fits the DJI O4 and Nano analog cameras
You can also use tinywhoop cameras with the Tressym Joker canopy for an even lighter build. I would NOT suggest this however, because it might not be crash-proof.
Package contains
1x Bengal frame
with 4x M2 black carbon steel pressnuts, pre-installed
4x M2x20mm stack screws
4x M2x12mm stack screws
Optionally: TPU parts, made to order
Suggested starter build
Flight controller
JHEMCU GHF722AIO-ICM 40A 2-6S
A cheap and well made AIO that can easily handle anything the Bengal's motors could ever need, and way more. Later, you could even reuse it in a bigger build.
Video transmitter (digital)
DJI O4 Air Unit (Lite)
The best quality VTX in this size, worth the high price. Handle carefully. Use side holes to mount the antenna, so that it doesn't overlap the camera's MIPI cable.
Video transmitter (analog)
Happymodel OVX300
A very light VTX, with great value for its price. Extensively tested and widely recommended.
Camera
Caddx Ant Nano
A light Nano camera that works well for its price.
Motors
1103 8000KV motors, or 1204 8000KV motors.
I don't have a specific recommendation.
Propellers
Gemfan 2520-3
Delivers great punch for dynamic freestyle. Silent and smooth, with low vibration and acceptable propwash handling.
Batteries
Any 3S 550mAh battery
I don't have a specific recommendation.
GPS
BZGNSS BZ-121
Finds satellites fast. Mount on outside of arm, near the motor, for best results.
